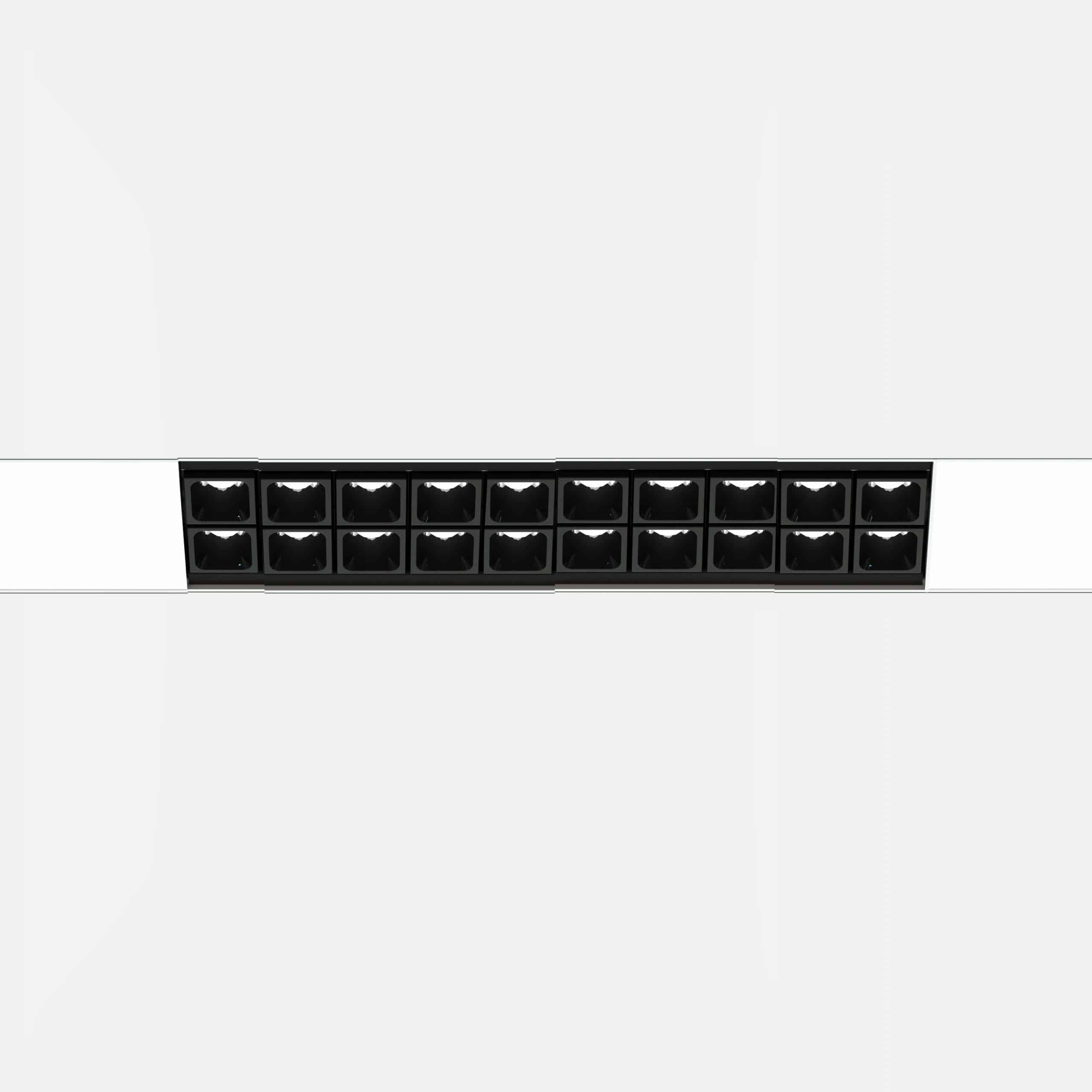

Leva 10+10, module for File 2 system

Leva 10+10, module for File 2 system

Sistema modulare per illuminazione diretta, diffusa e/o d'accento, composto da profili vuoti in estruso di alluminio verniciato o anodizzato 75x78 mm. di lunghezza predefinita o tagliabili a misura, disponibili nelle versioni a parete, plafone, sospensione, incasso con cornice di battuta super-slim larghezza 5 mm. e incasso rasato a scomparsa totale trimless (94x81 mm.). Da integrare con sorgenti lineari LED o… read more

Light source Code Power Color temp. Lumen CRI Lens Protocol Dim
LED LV142.927S
20x2,2W
2700K
4300
>90
 Spot 20° On/Off L304xW74.5 mm
LED LV142.927SD
20x2,2W
2700K
4300
>90
 Spot 20° Dimmable Dali L304xW74.5 mm
LED LV142.927F
20x2,2W
2700K
4300
>90
 Flood 32° On/Off L304xW74.5 mm
LED LV142.927FD
20x2,2W
2700K
4300
>90
 Flood 32° Dimmable Dali L304xW74.5 mm
LED LV142.927W
20x2,2W
2700K
4300
>90
 Wide 50° On/Off L304xW74.5 mm
LED LV142.927WD
20x2,2W
2700K
4300
>90
 Wide 50° Dimmable Dali L304xW74.5 mm
LED LV142.930S
20x2,2W
3000K
4340
>90
 Spot 20° On/Off L304xW74.5 mm
LED LV142.930SD
20x2,2W
3000K
4340
>90
 Spot 20° Dimmable Dali L304xW74.5 mm
LED LV142.930F
20x2,2W
3000K
4340
>90
 Flood 32° On/Off L304xW74.5 mm
LED LV142.930FD
20x2,2W
3000K
4340
>90
 Flood 32° Dimmable Dali L304xW74.5 mm
LED LV142.930W
20x2,2W
3000K
4340
>90
 Wide 50° On/Off L304xW74.5 mm
LED LV142.930WD
20x2,2W
3000K
4340
>90
 Wide 50° Dimmable Dali L304xW74.5 mm
LED LV142.935S
20x2,2W
3500K
4720
>90
 Spot On/Off L304xW74.5 mm
LED LV142.935SD
20x2,2W
3500K
4720
>90
 Spot Dimmable Dali L304xW74.5 mm
LED LV142.935F
20x2,2W
3500K
4720
>90
 Flood On/Off L304xW74.5 mm
LED LV142.935FD
20x2,2W
3500K
4720
>90
 Flood Dimmable Dali L304xW74.5 mm
LED LV142.935W
20x2,2W
3500K
4720
>90
 Wide On/Off L304xW74.5 mm
LED LV142.935WD
20x2,2W
3500K
4720
>90
 Wide Dimmable Dali L304xW74.5 mm
LED LV142.940S
20x2,2W
4000K
4440
>90
 Spot 20° On/Off L304xW74.5 mm
LED LV142.940SD
20x2,2W
4000K
4440
>90
 Spot 20° Dimmable Dali L304xW74.5 mm
LED LV142.940F
20x2,2W
4000K
4440
>90
 Flood 32° On/Off L304xW74.5 mm
LED LV142.940FD
20x2,2W
4000K
4440
>90
 Flood 32° Dimmable Dali L304xW74.5 mm
LED LV142.940W
20x2,2W
4000K
4440
>90
 Wide 50° On/Off L304xW74.5 mm
LED LV142.940WD
20x2,2W
4000K
4440
>90
 Wide 50° Dimmable Dali L304xW74.5 mm
